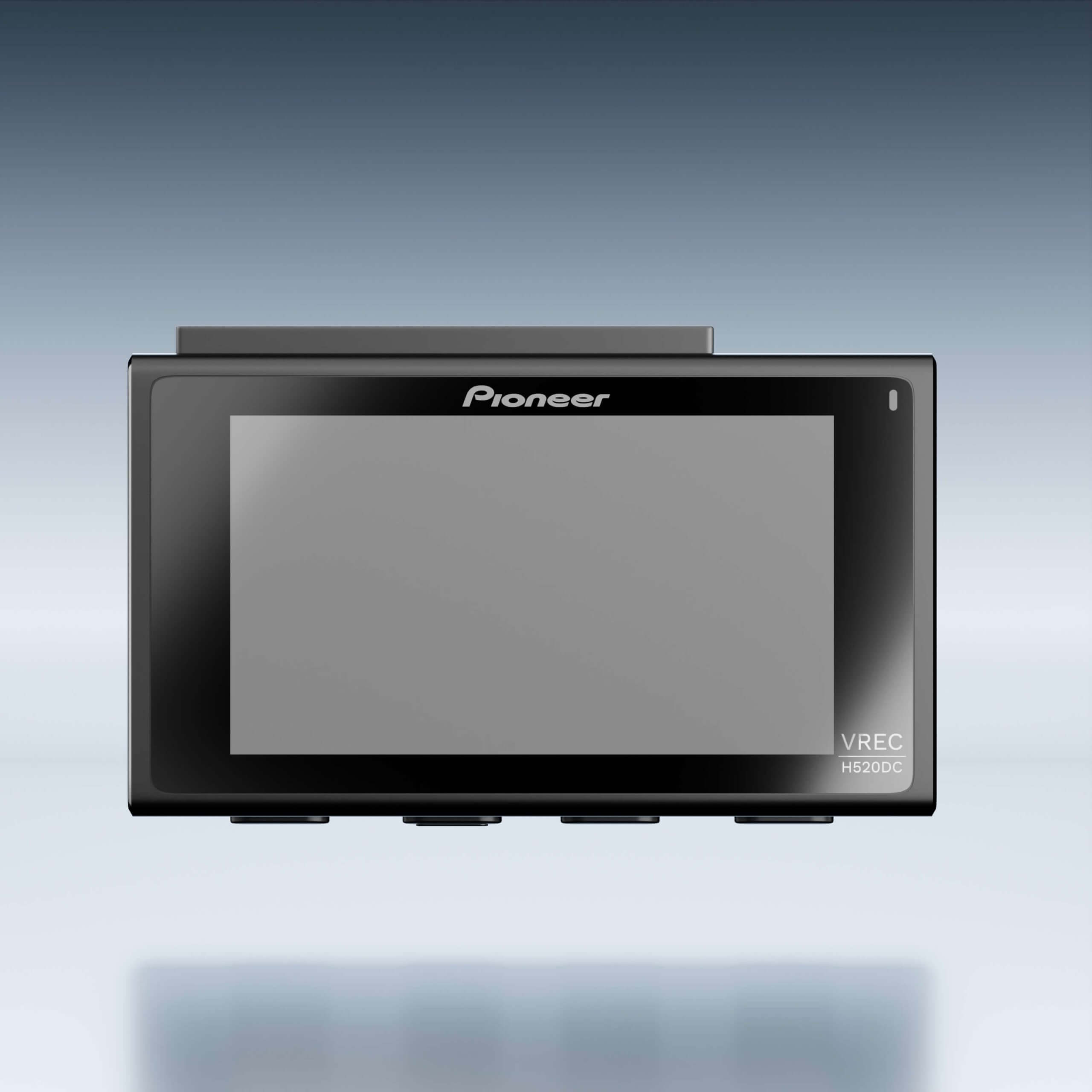

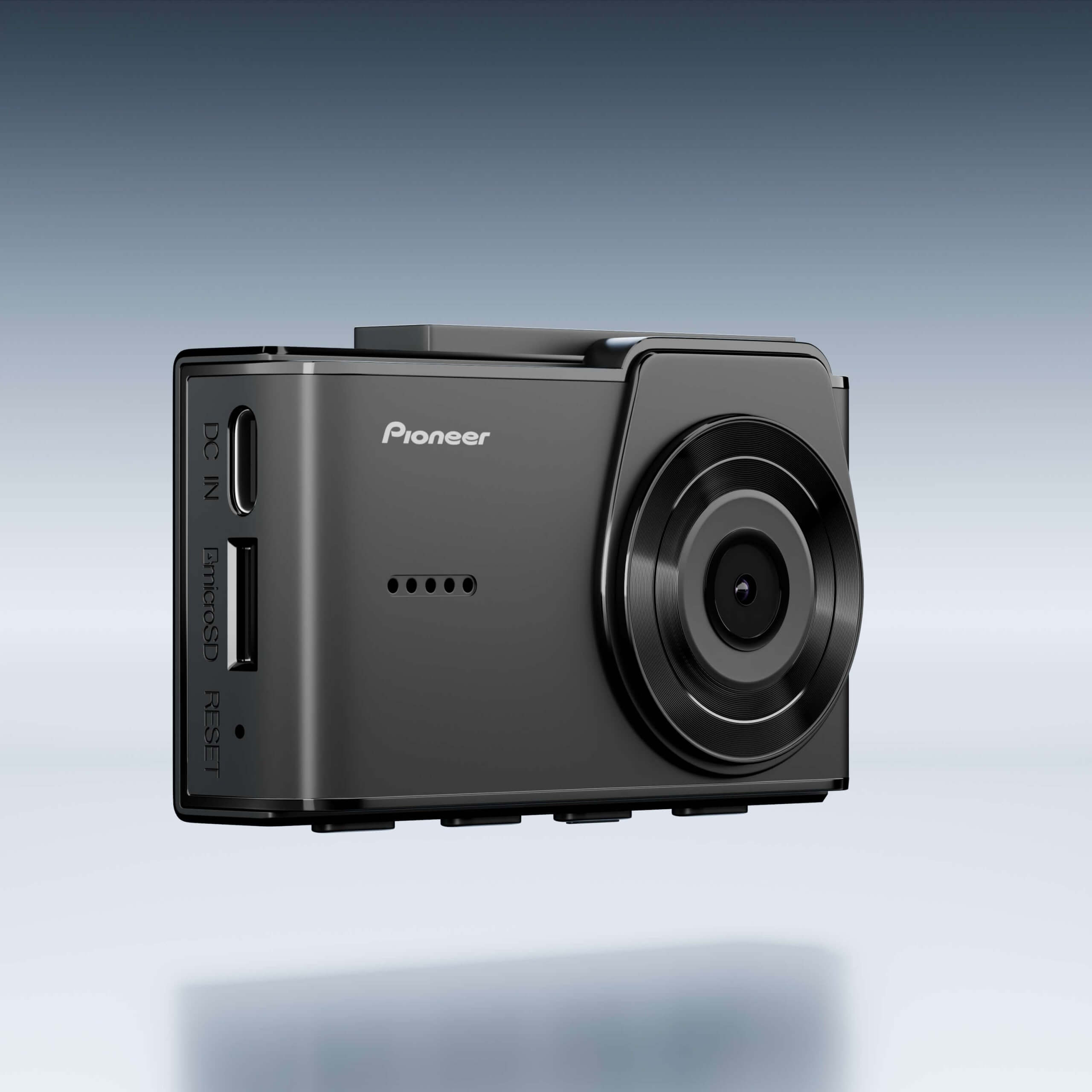

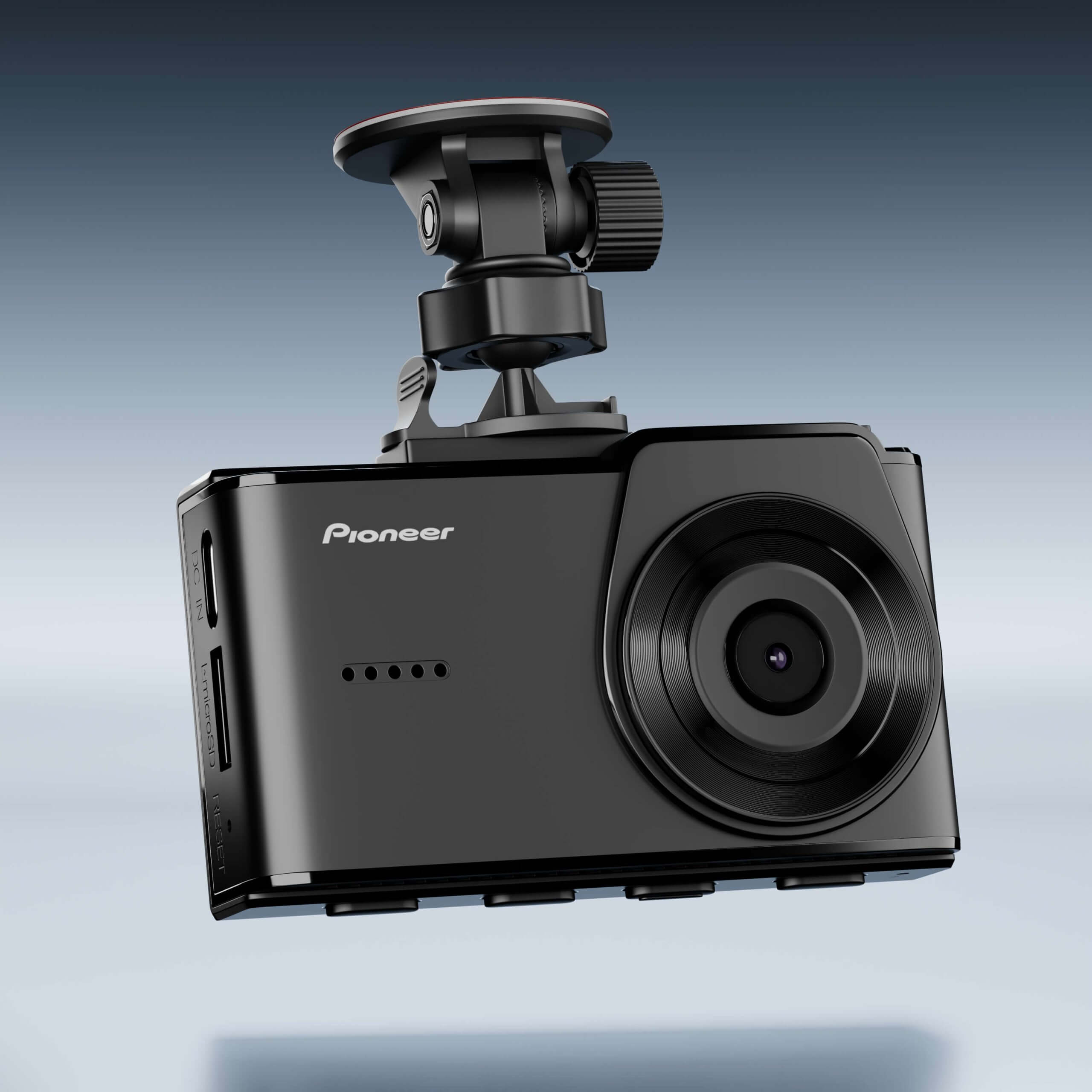

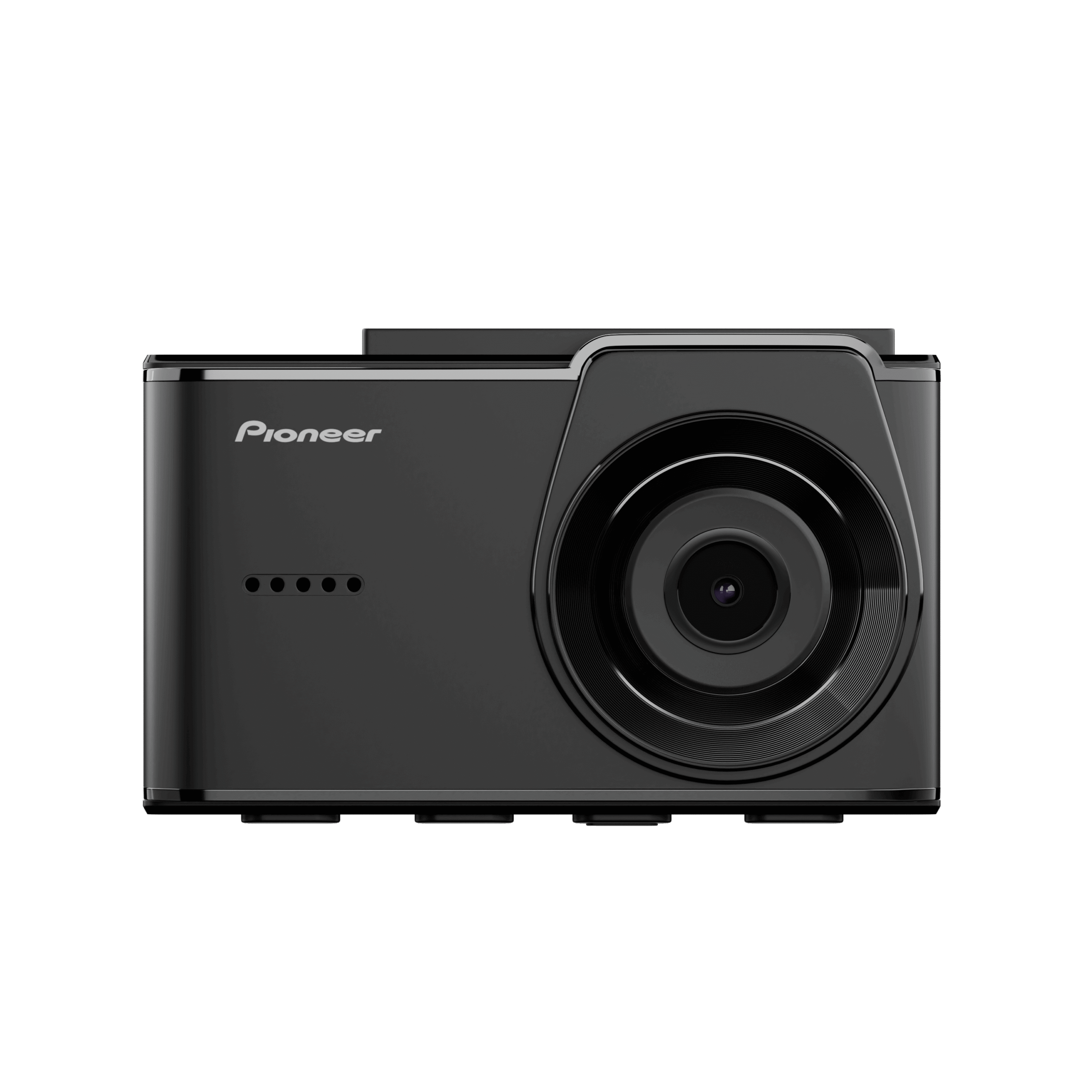

Pioneer VREC-H520DC
Dual-channel front and rear 2K recording
3.0” IPS touchscreen with intuitive controls
Sony STARVIS 2™ sensor for improved night performance
ADAS features with optional parking surveillance
The Pioneer VREC-H520DC delivers enhanced front and rear protection with high-quality 2K recording and advanced low-light performance. Equipped with Sony STARVIS 2™ sensor technology, night vision capabilities, and a 3.0” IPS touchscreen, it captures detailed footage day and night. Its dual-channel setup ensures comprehensive vehicle coverage, while ADAS safety features and optional 24/7 security mode help provide confidence on every drive.
Additional Information
| Features | |
| Front Camera | yes |
|---|---|
| Rear Camera | yes |
| Display | 3″ (7.6 cm) |
| Resolution | 2K, HDR (Front) + Full HD (Rear) |
| Image Sensor | Sony STARVIS 2 IMX675 , 5MP |
| Halo Reduction | Yes |
| Field Of View | 143° Diagonal |
| GPS | Yes – Inbuilt |
| ADAS | yes |
| ADAS Functions | FCWS, LDWS, Stop and Go |
| Wi-Fi | yes |
| Loop Recording | 1 min, 3 min |
| Sound Recording | yes |
| Multi Recording (Front & Rear Simultaneously) | yes |
| Recording Function – Loop / Event / Manual | yes |
| Event Recording Using G-Sensor | Before 20 sec + After 20 sec |
| Time-lapse – During Driving | yes |
| Parking Mode | Requires Optional Hardwire Kit (RD-HWK300) |
| Time-lapse – During Parking | yes |
| Still Picture | yes |
| Smartphone App (iOS & Android) | yes |
| Playback | With SD Card On PC, Pioneer Mobile App, GPS Playback With Map Plotting on Mobile App |
| Sort Videos By Trips, Dates, Events | yes |
| Micro-SD Card Capability | Up TO 512GB |
| Micro-SD Card Included | Yes – 128GB |
| Firmware Update | OTA – Over The Air |
